Description
DETAILS
Fuel EX 9.8 is the carbon trail bike that can fly through singletrack, throw down with the rowdy trail crew, and crush miles during marathon races. A lightweight full OCLV Mountain Carbon frame, 1×12 Shimano XT drivetrain, carbon wheels, and FOX Performance Float suspension with Trek’s exclusive RE:aktiv with Thru Shaft shock make it the perfect choice for all-mountain shredders who want a single bike that does it all.
It’s right for you if…
You like going fast, getting rowdy, and clearing every obstacle on the first try. You want a single bike that can handle any trail, with high-quality parts, a carbon frame, and dialed suspension for everything from burly technical descents to single track and even endurance races.
The tech you get
A light and stiff full OCLV Mountain Carbon frame, 140mm FOX Performance 36 Float fork, 130mm of rear travel with a FOX Performance Float shock featuring Trek’s exclusive RE:aktiv with Thru Shaft, and a 1×12 Shimano XT drivetrain. Plus, powerful Shimano SLX 4-piston hydraulic disc brakes, Tubeless Ready Bontrager Line Carbon 30 wheels with a 54-tooth Rapid Drive rear hub for quick engagement, a Bontrager Line Elite dropper post, and a Bontrager Line Pro OCLV Carbon handlebar. An internal storage compartment lets you securely stow ride essentials and doesn’t detract from the bike’s sleek look.
The final word
Fuel EX 9.8 is the definitive mountain bike, and a great choice if you’re going to invest in a single bike for all kinds of terrain. A full carbon frame, quality parts build, and advanced suspension make it an outstanding all-around mountain bike for endurance racing and ripping every kind of trail.
Why you’ll love it
– This bike is light, fast, and capable of shredding any kind of trail whether you’re heading out for an afternoon session or miles of endurance riding
– RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control
– A sleek internal storage compartment gives you a versatile spot to stow tools and gear
– We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5″ wheels, S frames get to choose between 27.5″ or 29″, and sizes M to XL get 29″ wheels
– Make it yours: it’s customizable through Project One

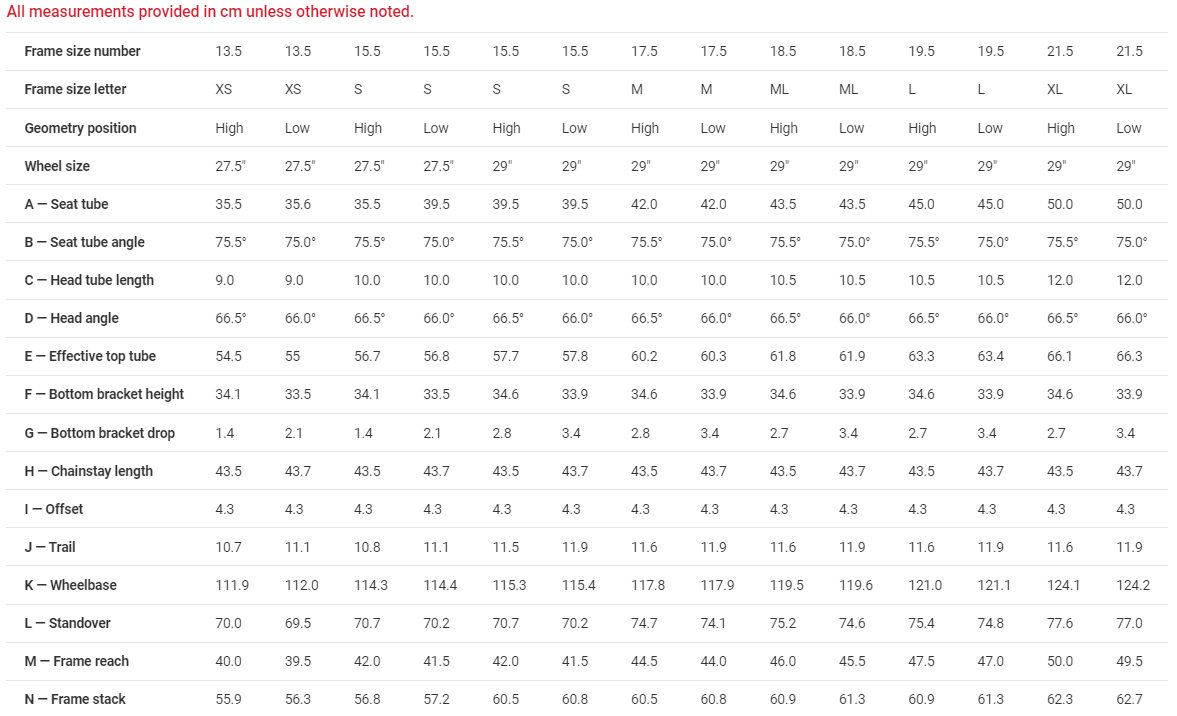

GEOMETRY
SIZING
DROPPER POSTS
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Wheel size:
Size X-Small: 27.5-inch
Size Small: 27.5-inch or 29-inch
Sizes Medium – X-Large: 29-inch
Pedals sold separately
SPECS
| Frame | OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel |
|---|---|
| Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm bolt-on axle, 140mm travel |
| Headset | Knock Block Integrated, cartridge bearing, 1-1/8” top, 1.5” bottom |
| Rear Shock | Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab XS–S: 210×52.5mm; S–XL: 210x55mm |
| Axles | Front: 110x15mm Rear: 148x12mm |
| Rims/Wheels | Bontrager Line Carbon 30 |
| Hubs | 54T Rapid Drive, 6-bolt, Shimano MicroSpline freehub |
| Tires | Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 2.60” |
| Crankset | Shimano XT M8100, Boost XS–S: 170mm length; M–XL: 175mm length |
| Chainrings | 32T alloy ring |
| Bottom Bracket | Shimano MT500, 92mm, PressFit |
| Chain | Shimano XT M8100, 12 speed |
| Rear Derailleur | Shimano XT M8100, long cage, 51T max cog |
| Cassette/Rear Cogs | Shimano XT M8100, 10-51, 12 speed |
| Shifters | Shimano XT M8100, 12 speed |
| Handlebars | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Tape/Grips | Bontrager XR Trail Elite, alloy lock-on |
| Stem | Bontrager Line Pro, 35mm, Knock Block, 0 degree XS–S: 40mm length; M–XL: 50mm length |
| Brakes | Shimano SLX M7120 4-piston hydraulic disc w/ Shimano RT66, 6-bolt, 180mm rotors |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seat Post | Bontrager Line Elite Dropper, internal routing, 31.6mm XS–S: 100mm travel, 340mm length; M–ML: 150mm travel, 440mm length; L–XL: 170mm travel, 480mm length |
| Accessories & Extras | Bontrager BITS Internal Frame Storage Bag |
* Subject to change without notice.
VIDEOS
PART NUMBERS
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Purple Phaze/Matte Raw Carbon / X-Small / 27.5-inch | 601842224120 | 595265 | |
| Gloss Purple Phaze/Matte Raw Carbon / Small / 27.5-inch | 601842224113 | 595266 | |
| Gloss Purple Phaze/Matte Raw Carbon / Small / 29-inch | 601842224106 | 595267 | |
| Gloss Purple Phaze/Matte Raw Carbon / Medium / 29-inch | 601842224090 | 595268 | |
| Gloss Purple Phaze/Matte Raw Carbon / Medium/Large / 29-inch | 601842224083 | 595269 | |
| Gloss Purple Phaze/Matte Raw Carbon / Large / 29-inch | 601842224076 | 595270 | |
| Gloss Purple Phaze/Matte Raw Carbon / X-Large / 29-inch | 601842224069 | 595271 | |
| Miami Green to Teal Fade / X-Small / 27.5-inch | 601842224199 | 595258 | |
| Miami Green to Teal Fade / Small / 27.5-inch | 601842224182 | 595259 | |
| Miami Green to Teal Fade / Small / 29-inch | 601842224175 | 595260 | |
| Miami Green to Teal Fade / Medium / 29-inch | 601842224168 | 595261 | FUE33335168E |
| Miami Green to Teal Fade / Medium/Large / 29-inch | 601842224151 | 595262 | |
| Miami Green to Teal Fade / Large / 29-inch | 601842224144 | 595263 | |
| Miami Green to Teal Fade / X-Large / 29-inch | 601842224137 | 595264 | |
| Raw Carbon/Rage Red / X-Small / 27.5-inch | 601842224267 | 595251 | |
| Raw Carbon/Rage Red / Small / 27.5-inch | 601842224250 | 595252 | |
| Raw Carbon/Rage Red / Small / 29-inch | 601842224243 | 595253 | |
| Raw Carbon/Rage Red / Medium / 29-inch | 601842224236 | 595254 | |
| Raw Carbon/Rage Red / Medium/Large / 29-inch | 601842224229 | 595255 | |
| Raw Carbon/Rage Red / Large / 29-inch | 601842224212 | 595256 | |
| Raw Carbon/Rage Red / X-Large / 29-inch | 601842224205 | 595257 |
